Caterpillar heater Description:
Caterpillar heater is a pad heater constructed of interlocking sintered alumina ceramic beads which insulate stranded nickel-chrome wire. This durable construction forms a flexible mat of considerable mechanical strength. They can be used up to 2050 Deg F (1121 Deg C) and are supplied with insulated leads with male welder terminations.
Caterpillar heater operates on low voltage (80 volts or less on AC or DC current) such as that supplied by a typical arc welder. They are designed for repeated heating applications. Their modular design permits a variety of element shapes, sizes, and thermal capacities to choose from. They can be used bare (as supplied) or with the application of rigid or flexible insulation to retain heat and speed up the heat treating jobs.
|
60V Heater |
|
Type |
Width |
Length |
Rating |
Current |
Voltage |
|
|
(mm) |
(mm) |
(kW) |
(amp) |
(volt) |
|
CP3-60V |
75 |
724 |
2.7kW |
45amp |
60 volt |
|
CP4-60V |
102 |
533 |
2.7kW |
45amp |
60 volt |
|
CP6-60V |
152 |
368 |
2.7kW |
45amp |
60 volt |
|
CP8-60V |
203 |
267 |
2.7kW |
45amp |
60 volt |
|
CP10-60V |
254 |
229 |
2.7kW |
45amp |
60 volt |
|
CP12-60V |
305 |
184 |
2.7kW |
45amp |
60 volt |
|
CP15-60V |
380 |
146 |
2.7kW |
45amp |
60 volt |
|
CP18-60V |
457 |
127 |
2.7kW |
45amp |
60 volt |
|
CP21-60V |
535 |
102 |
2.7kW |
45amp |
60 volt |
|
CP24-60V |
610 |
83 |
2.7kW |
45amp |
60 volt |
|
CP26-60V |
740 |
83 |
2.7kW |
45amp |
60 volt |
|
|
80V Heater |
|
Type |
Width |
Length |
Rating |
Current |
Voltage |
|
|
(mm) |
(mm) |
(KW) |
(amp) |
(volt) |
|
CP3-80V |
75 |
991 |
3.6KW |
45amp |
80 volt |
|
CP4-80V |
102 |
737 |
3.6KW |
45amp |
80 volt |
|
CP6-80V |
152 |
501 |
3.6KW |
45amp |
80 volt |
|
CP8-80V |
203 |
368 |
3.6KW |
45amp |
80 volt |
|
CP10-80V |
254 |
368 |
3.6KW |
45amp |
80 volt |
|
CP12-80V |
305 |
248 |
3.6KW |
45amp |
80 volt |
|
CP15-80V |
380 |
203 |
3.6KW |
45amp |
80 volt |
|
CP18-80V |
457 |
165 |
3.6KW |
45amp |
80 volt |
|
CP21-80V |
535 |
145 |
3.6KW |
45amp |
80 volt |
|
CP24-80V |
610 |
125 |
3.6KW |
45amp |
80 volt |
|
CP29-80V |
740 |
100 |
3.6KW |
45amp |
80 volt |
|
CP33-80V |
840 |
85 |
3.6KW |
45amp |
80 volt |
|
CP36-80V |
915 |
80 |
3.6KW |
45amp |
80 volt |
|
Caterpillar heater Applications:
l Pre-welding heating: straight seam weld, longitudinal, circumferential weld, thick steel plate etc
l , ; Post-welding heating: tank, boiler or other metal jobs ,
l Heating: mold heating, shipboard, zinc bath, large& irregular metal parts
l Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

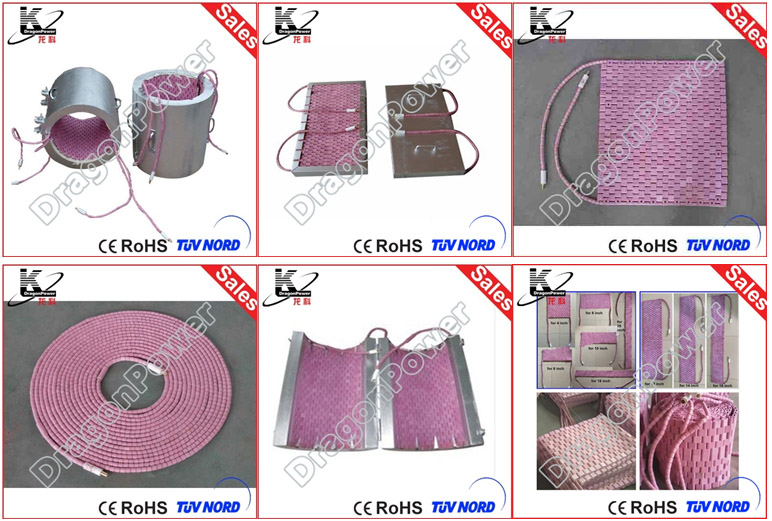

Caterpillar heater Types:
Packaging and Shipping
Packaging: caterpillar heater in plywood case outside if needed.
Shipment: 1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight. 3. Arranged to your order
Our Service
Caterpillar heater Order Guide
Please specify the following when ordering.
1. Size and shape
2. Voltage and power
3. Operation temperature requirement
4. Other design requirement
5. Order quantity
6. Delivery date
** It’s better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
